FLG 5 - pistolet lakierniczy ręczny - części do pistoletu FLG 5 DEVILBISS


FLG 5 - pistolet lakierniczy ręczny - części do pistoletu FLG 5 DEVILBISS

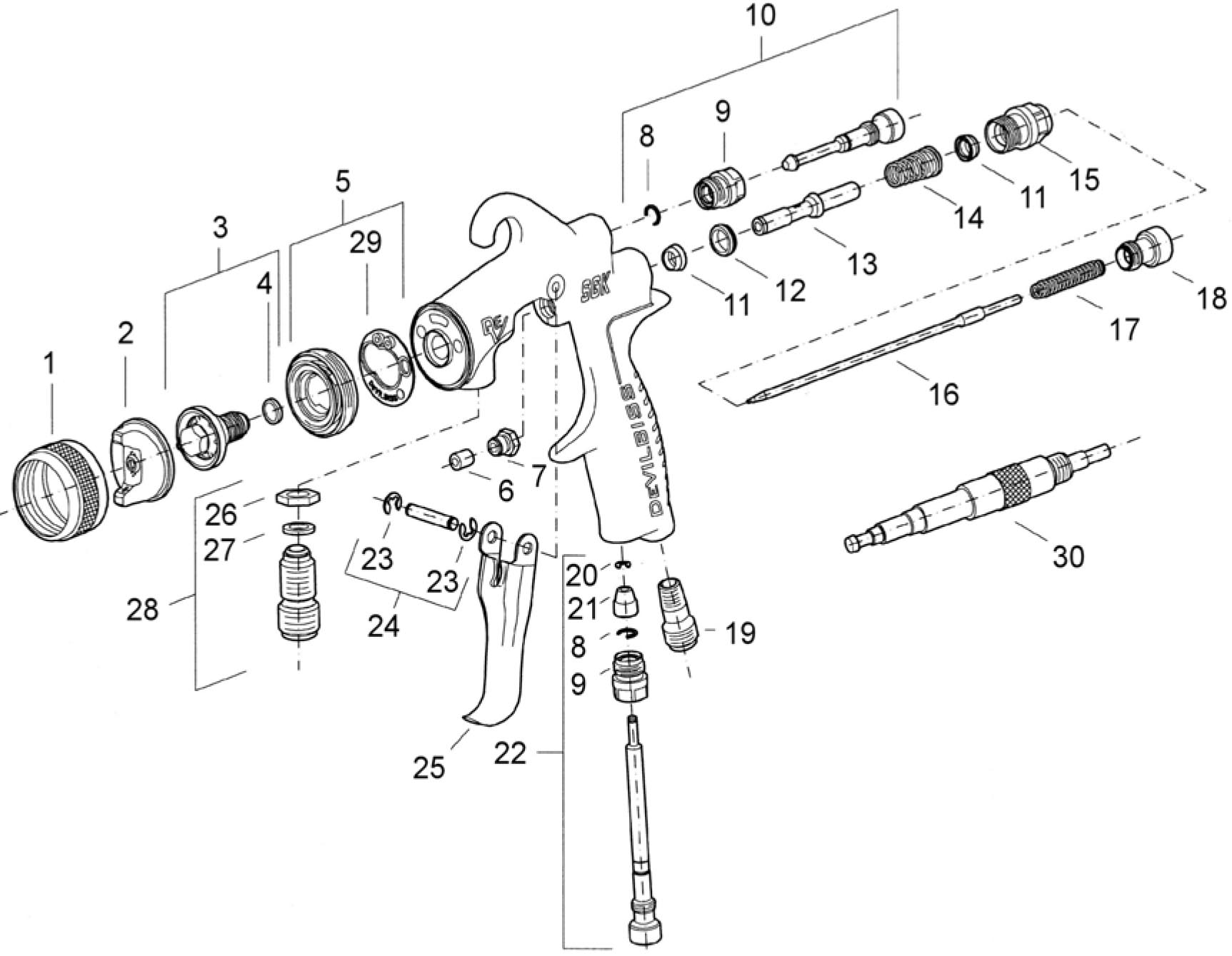

Ref. Part no. Description
1 SGK-0023 Retaining ring
2 FLG-0001-622 Air cap No 622
3 SGK-0012-14 Fluid Needle 1.4 mm
4(1) - Gasket
5(2) K-5032 Spray head kit
6(1) - Packing
7 - Packing gland
8 - Snap ring
9 - Spray pattern adjustment valve housing
10 - Spray pattern valve
11(1) - U-cup seal
12(1) - Air valve seat
13(1) - Air valve stem
14(1) - Air valve spring
15 - Air valve bushing
16 SGK-0402-14 Fluid needle 1.4 mm
17 - Fluid needle spring
18 - Fluid adjsutment knob
Ref. Part no. Description
19 - Nipple
20 - Circlip
21 - Air regulating valve head
22 - Air regulating valve assembly
23 - Circlip
24 - Trigger pin assembly
25 - Trigger
26 - Nut
27 - Washer
28 - Nipple assembly fluid
29(1)(2) - Gasket
30(1) - Assembly tool kit
(1) K-5044 Replacement for seal, air distributing ring and seal
(2) K-5032 ring, items 4, 6, 11, 12, 13, 14, 29,30 Replacement for air distributing ring kit, items 4,5,29

FLG-5 DEVILBISS Gravity spray gun

FLG 5 - pistolet lakierniczy ręczny - części do pistoletu FLG 5 DEVILBISS

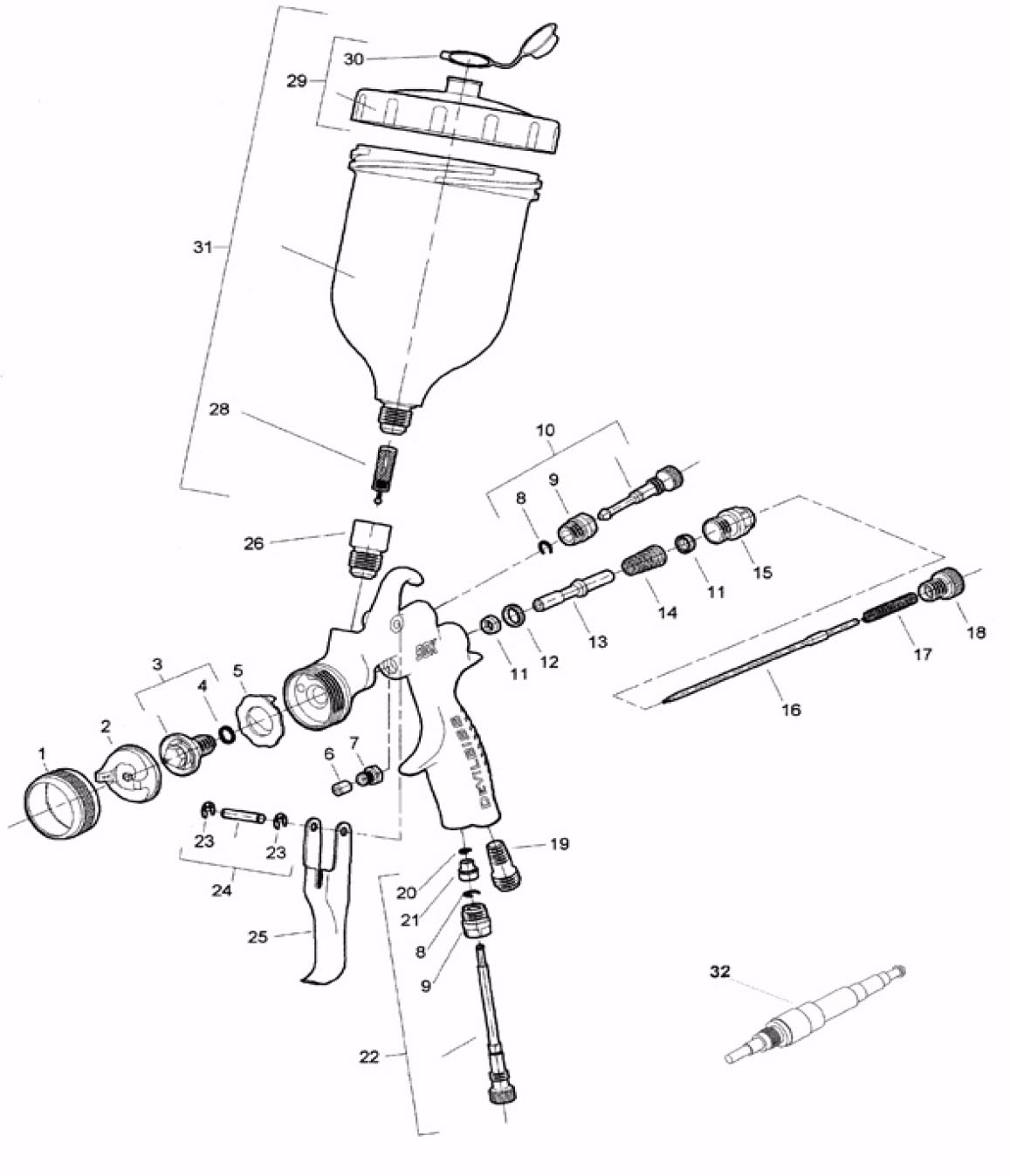

Ref. Part no. Description
1 SGK-0023 Retaining ring
2 FLG-0001-5 Air cap
3 SGK-0012-14 Fluid nozzle 1.4 mm
SGK-0014-18 Fluid nozzle 1.8mm
SGK-0012-20 Fluid nozzle 2.0 mm
4(1)(2) - Gasket
5(1) (2) - Baffle
6(1) - Packing
7 - Packing gland nut
8 - Retaining ring
9 - Spray pattern adjustment valve housing
10 - Spray pattern valve
11(1) - U-cup Seal
12(1) - Air valve seat
13(1) - Air valve stem
14(1) - Air valve spring
15 - Insert
16
SGK-0414 Needle 1.4 mm
SGK-0418 Needle 1.8 mm
SGK-0420 Needle 2.0 mm
Ref. Part no. Description
17 - Needle spring
18 - Fluid adjusting knob
19 - Air inlet nipple
20 - Retaining ring
21 - Air adjusting valve head
22 - Air adjusting valve assembly
23 - Retaining ring
24 - Bracket axle with screw
25 - Trigger
26 - Fluid nipple
28 KGP-5-K5 Filter (Pack of 5)
29 GFC-402 Lid assembly
30 GFC-2-K5 Drip free vent lid(Pack of 5)
31 GFC-501 Gravity cup 0.6 l assembly
32(1) - Assembly tool
(1) K-5040 Seals and air distributing ring kit, items 4, 5, 6, 11, 12, 13, 14, 32
(2) K-5030 Air distributing ring kit, items 4, 5


FLG - 5 DEVILBISS Suction spray gun - Pistolet ssący dolnozasilany (schemat-części)


FLG 5 - pistolet lakierniczy ręczny - części do pistoletu FLG 5 DEVILBISS

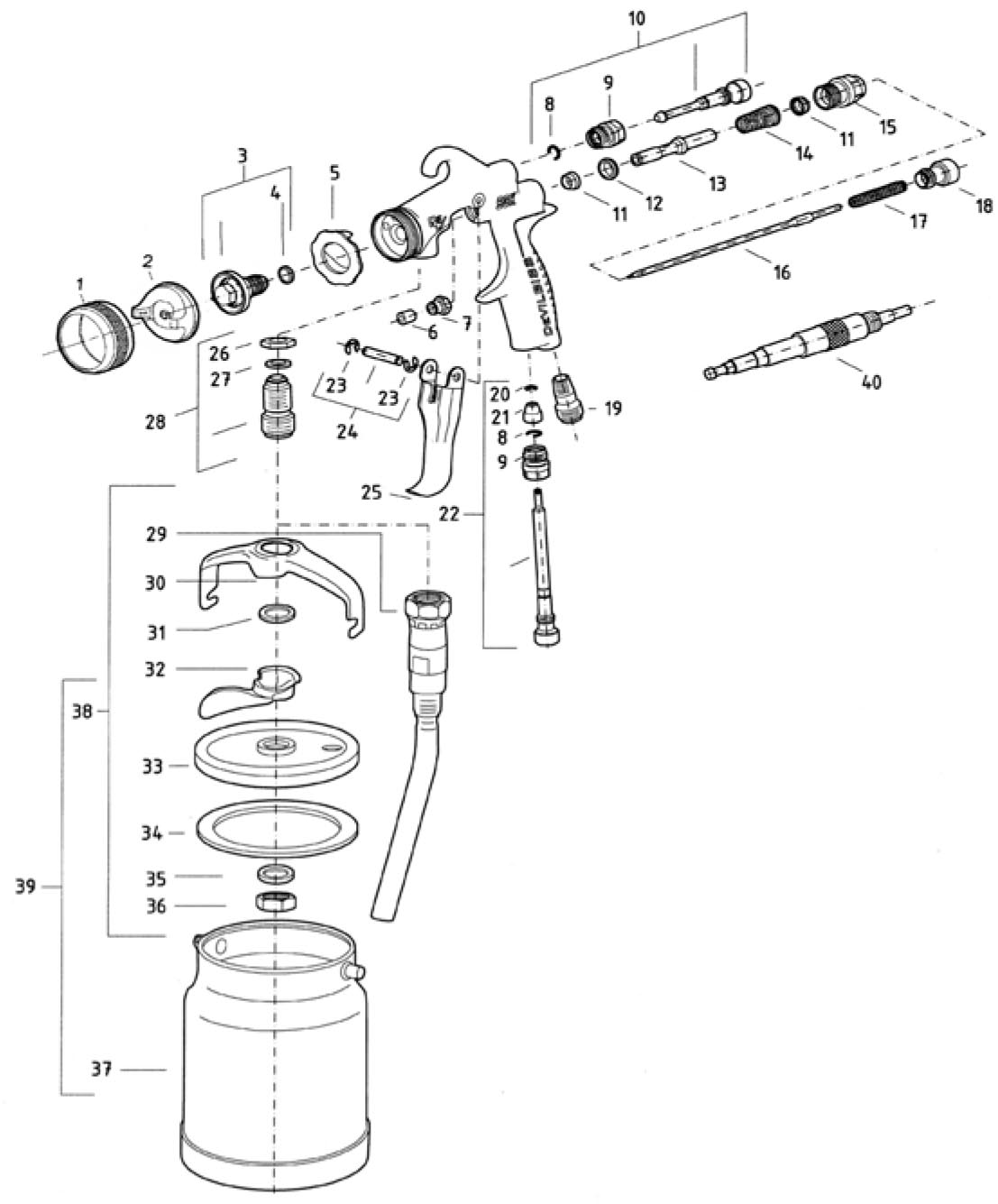

Ref. Part no. Description
1 SGK-0023 Retaining ring
2 FLG-0001-5 Air cap
3 SGK-0014-18 Fluid tip 1.8 mm
4(1)(2) - Gasket
5(1)(2) - Baffle
6(1) - Packing
7 - Packing gland nut
8 - Retaining ring
9 - Spray pattern adjustment valve housing
10 - Spray pattern valve
11(1) - U-cup seal
12(1) - Air valve seat
13(1) - Air valve shaft
14(1) - Air valve spring
15 - Insert
16 SGK-0430-18 Needle 1.8 mm
17 - Needle spring
18 - Fluid adjusting knob
19 - Nipple
20 - Retaining ring
21 - Air adjusting valve
22 - Air regulating valve assembly
Ref. Part no. Description
23 - Trigger pin assembly
24 - Bracket axle with screw
25 - Trigger
26 - Nut
27 - Washer
28 - Nipple assembly fluid
29 - Fluid tube 3/8“
30 - Yoke
31 - Washer
32 - Cam
33 - Lid
34 - Gasket
35 - Washer
36 - Nut
37 - Cup 1l
38 - Lid assembly
39 - Cup assembly
40(1) - Assembly tool
(1) K-5040 Seal and air distributing ring kit, for items 4, 5, 6, 11, 12, 13, 14, 40
(2) K-5030 Air distributing ring kit, for items 4, 5


FLG 5 - pistolet lakierniczy ręczny - opis pistoletu FLG 5 DEVILBISS

FLG 5 - pistolet lakierniczy ręczny - instrukcja obsługi pistoletu FLG 5 DEVILBISS

FLG 5 - pistolet lakierniczy ręczny - części do pistoletu FLG 5 DEVILBISS
